main.c File Reference

main part of the code More...

#include <time.h>
#include <stdlib.h>
#include <string.h>
#include <stdio.h>
#include "main.h"
#include "sdl.h"
#include "debugging.h"
#include "events.h"
#include "load_graphics.h"

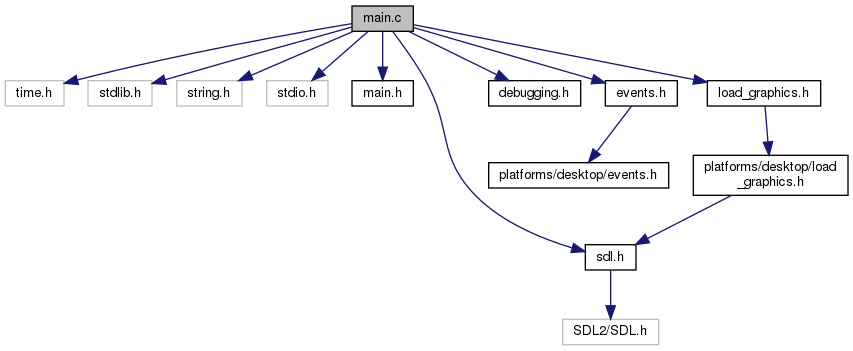

Include dependency graph for main.c:

Classes
struct	ttm
	structure for tetriminos More...

Macros
#define	HEIGHT   18
#define	WIDTH   12
#define	BLK_SIZE   32
#define	SCREEN_HEIGHT   BLK_SIZE * HEIGHT
#define	SCREEN_WIDTH   BLK_SIZE * WIDTH
#define	TTM_WIDTH   4

Functions
int	setBackColor (SDL_Renderer *renderer, SDL_Color color)
int	canPrint (char mat[TTM_WIDTH][TTM_WIDTH], int row, int col)
	Determines ability to print tetrimino. More...
int	rotateCur (void)
	rotate current tetrimino More...
int	wholeLine (int row)
	determines if line is whole More...
int	randTtm (void)
	change current tetrimino to a random tetrimino More...
int	printTtm (char mat[TTM_WIDTH][TTM_WIDTH], int row, int col)
	put a tetrimino in the board More...
void	downTtm (void)
	down current tetrimino from 1 row
void	fullDownTtm (void)
	down current tetrimino at the bottom
void	moveTtm (int direction)
	move current tetrimino to left or right More...
void	removeLine (int row)
	Removes blocks from line and down the above ones. More...
void	refreshScreen (void)
	refresh screen More...
void	game (void)
	the place that contains game loop
int	init (SDL_Window *window)
int	main (int argc, char *argv[])

Variables
char	ITtm [][TTM_WIDTH]
char	LTtm [][TTM_WIDTH]
char	JTtm [][TTM_WIDTH]
char	TTtm [][TTM_WIDTH]
char	OTtm [][TTM_WIDTH]
char	ZTtm [][TTM_WIDTH]
char	STtm [][TTM_WIDTH]
SDL_Color	white = { 255, 255, 255, 255 }
SDL_Color	black = { 0, 0, 0, 0 }
struct ttm	curTtm
char	board [HEIGHT][WIDTH] = { 0 }
long	score = 0
SDL_Texture *	BLK
SDL_Renderer *	renderer

Detailed Description

main part of the code

"ttm" is an abbreviation for "tetrimino".

Function Documentation

canPrint()

int canPrint	(	char	mat[TTM_WIDTH][TTM_WIDTH],
		int	row,
		int	col
	)

Determines ability to print tetrimino.

Parameters

	mat	The matrix of the tetrimino
[in]	row	The row of the tetrimino
[in]	col	The column of the tetrimino

Returns

1 if able to print, 0 otherwise.

moveTtm()

void moveTtm

(

int

direction

)

move current tetrimino to left or right

Parameters

[in]

direction

The direction

printTtm()

int printTtm	(	char	mat[TTM_WIDTH][TTM_WIDTH],
		int	row,
		int	col
	)

put a tetrimino in the board

Parameters

[in]	mat	The matrix of the ttm
[in]	row	The row in board
[in]	col	The col in board

Returns

1 if it's not possible to print the ttm, 0 else

randTtm()

int randTtm

(

void

)

change current tetrimino to a random tetrimino

Returns

0 if current tetrimino successfully changed, 1 otherwise

refreshScreen()

void refreshScreen

(

void

)

refresh screen

remove everything from screen, refresh with content of board matrix, put current tetrimino at right place

removeLine()

void removeLine

(

int

row

)

Removes blocks from line and down the above ones.

Parameters

[in]

row

The line

rotateCur()

int rotateCur

(

void

)

rotate current tetrimino

Returns

0 if current tetrimino successfully rotated, 1 otherwise

wholeLine()

int wholeLine

(

int

row

)

determines if line is whole

Parameters

[in]

row

The line in the board

Returns

1 if the line is whole, 0 otherwise

Variable Documentation

ITtm

char ITtm[][TTM_WIDTH]

Initial value:

= {
    { 0, 0, 1, 0 },
    { 0, 0, 1, 0 },
    { 0, 0, 1, 0 },
    { 0, 0, 1, 0 }
}

JTtm

char JTtm[][TTM_WIDTH]

Initial value:

= {
    { 0, 0, 0, 0 },
    { 0, 0, 1, 0 },
    { 0, 0, 1, 0 },
    { 0, 1, 1, 0 }
}

LTtm

char LTtm[][TTM_WIDTH]

Initial value:

= {
    { 0, 0, 0, 0 },
    { 0, 1, 0, 0 },
    { 0, 1, 0, 0 },
    { 0, 1, 1, 0 }
}

OTtm

char OTtm[][TTM_WIDTH]

Initial value:

= {
    { 0, 0, 0, 0 },
    { 0, 0, 0, 0 },
    { 0, 1, 1, 0 },
    { 0, 1, 1, 0 }
}

STtm

char STtm[][TTM_WIDTH]

Initial value:

= {
    { 0, 0, 0, 0 },
    { 0, 0, 0, 0 },
    { 0, 1, 1, 0 },
    { 1, 1, 0, 0 }
}

TTtm

char TTtm[][TTM_WIDTH]

Initial value:

= {
    { 0, 0, 0, 0 },
    { 0, 1, 1, 1 },
    { 0, 0, 1, 0 },
    { 0, 0, 0, 0 }
}

ZTtm

char ZTtm[][TTM_WIDTH]

Initial value:

= {
    { 0, 0, 0, 0 },
    { 0, 0, 0, 0 },
    { 0, 1, 1, 0 },
    { 0, 0, 1, 1 }
}
